Description

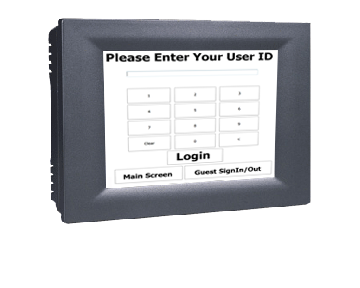

With our Kiosk Interface and the Advantech 3.5" Series you can do various things such as quickly Update Your Status, View Other Peoples Status, Leave Messages, View the Electronic Guest Book, and much more. It's also slim and compact and will fit nicely in a any Entrance, Lobby, or Outdoors
Overview
- Touch Screen for quick status changes and easy user input
- Clearly View information on the 3.5" Touch Screen
- Scrolling marquee for company-wide notifications
- Durable commercial grade design
- Outdoor mountable with wall bracket
Specifications
| |
Software/OS
|
|
EIOBoard Kiosk Interface Software (running on Windows 7 Home Premium 64-bit Edition) |
|
| |
Processor
|
|
Intel PXA270 312MHz |
|
| |
Memory
|
|
64MB on board SDRAM |
|
| |
Touch Screen
|
|
3.5" TouchScreen color TFT LCD
320 x 240 |
|
| |
Networking
|
|
10/100Base-T x 1 |
|
| |
Storage
|
|
32 MB on board NOR flash
SD slot x 1 (SDIO) |
|
| |
I/O ports
|
|
TPC-30T: RS-232/485 x 1 (COM1) with auto data flow
control
USB 1.1 x 1
TPC-32T: Isolated CAN 2.0B Interface/RS-232 x 1
(RS-232 for debug mode)
CAN Controller: SJA-1000
CAN Transceiver: 82C250
USB 1.1 x 1 |
|
| |
Dimensions
|
|
120.79 x 85.5 x 26.5 mm (4.76" x 3.37" x 1.04") |
|
| |
Warranty
|
|
1 Year |
|
| |
Specification Sheets |
|
 Datasheet |
Manual |
|
